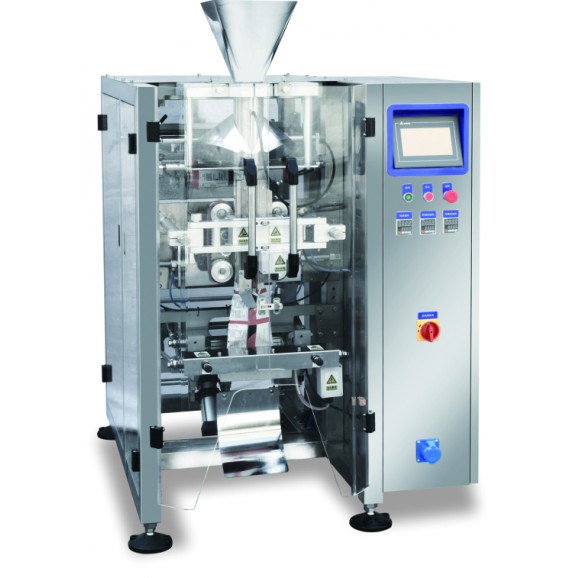

Application
It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
|
Model |
KL-F420 |
KL-F520 |
|
Measure method |

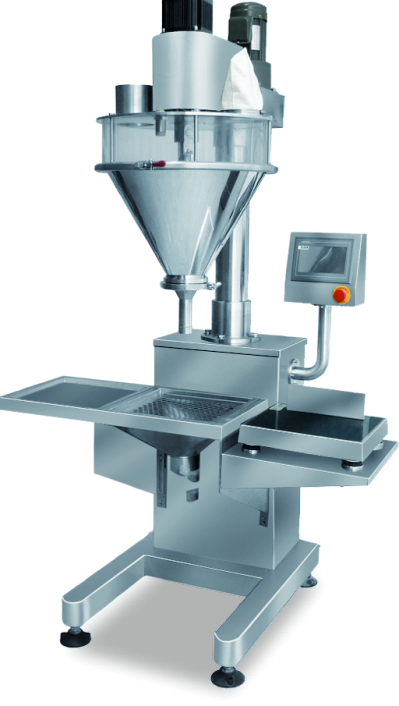

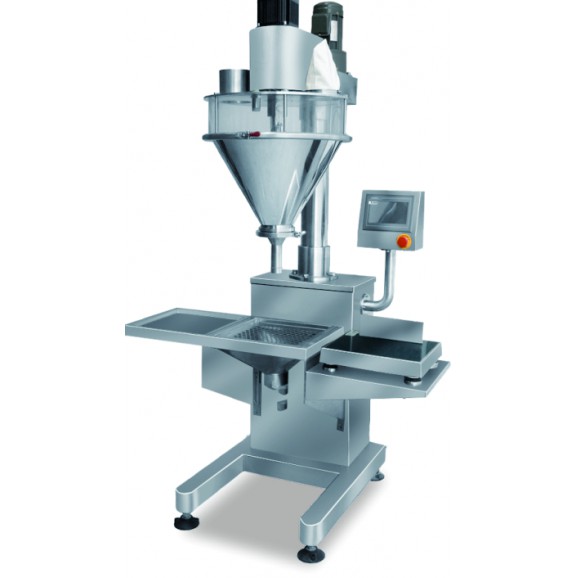

Screw quantitative |
Screw quantitative |
|

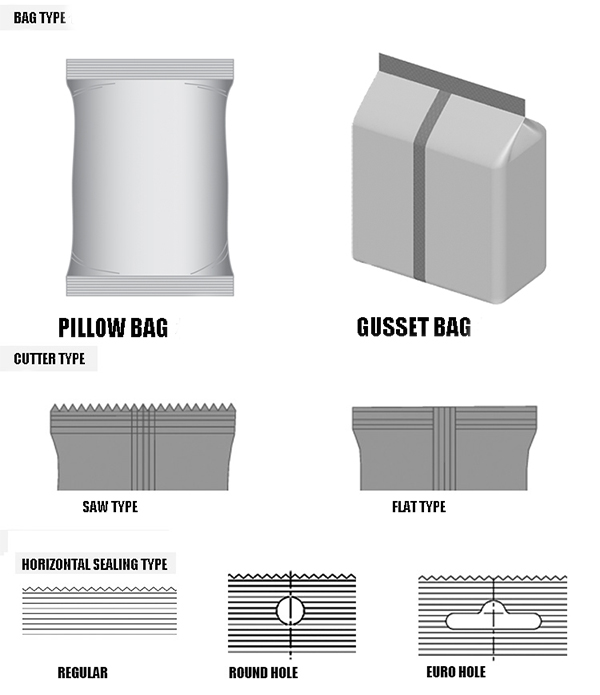

Making bag size |
(L)60-300mm, (W)60-200mm |
(L)80-350mm, (W)80-250mm |
|
Filling weight |
10-5000g |
10-5000g |
|
Packaging precision |
≤1% |
|
|
Packaging speed |
25-60bag /min Depend on the product characteristic |
|
|
Power supply |
Three phase 380/220V 50-60Hz / 6kw |
|
|
Pressure |
6-8 kg/cm2 |
0.3m3/min |
|
weight |
700kg |
950Kg |
|
Dimension (mm) |
1300×1500×2600mm |
|
