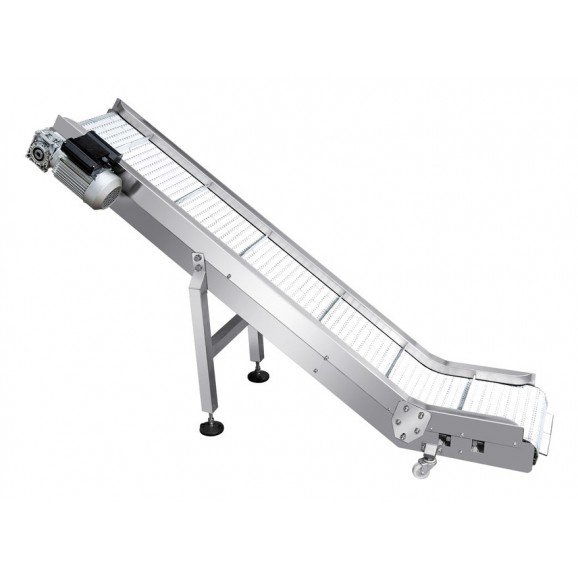

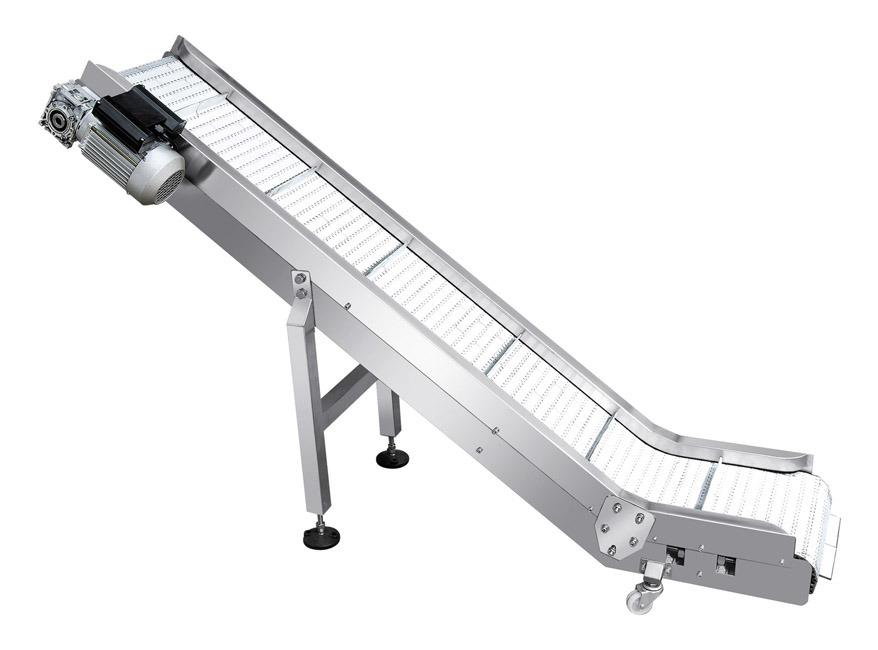

Feeding Conveyor

Address: 2nd Block, Qihui Industry Park,Beijiao Town,Shunde Foshan City,Guangdong,China. Tel:+86-757-28899280 Mob:+86-18029207226 Contact: sales@dreampacking.net

Take away conveyor

1. Steady conveying, adjustable speed or adjustable height as your need.
2. It has low noisy which is suitable for quiet work environment.
3. Simple structure, convenient maintenance.
4. Less energy consumption and low cost.
5. No sharp corners or danger to staff, and you can clean the belt freely with water
Tel:+86-757-28899280
Mob:+86-18029207226
Contact: sales@dreampacking.net
Application Range
Technical Parameters
Bag Sealing Type
Optional Items

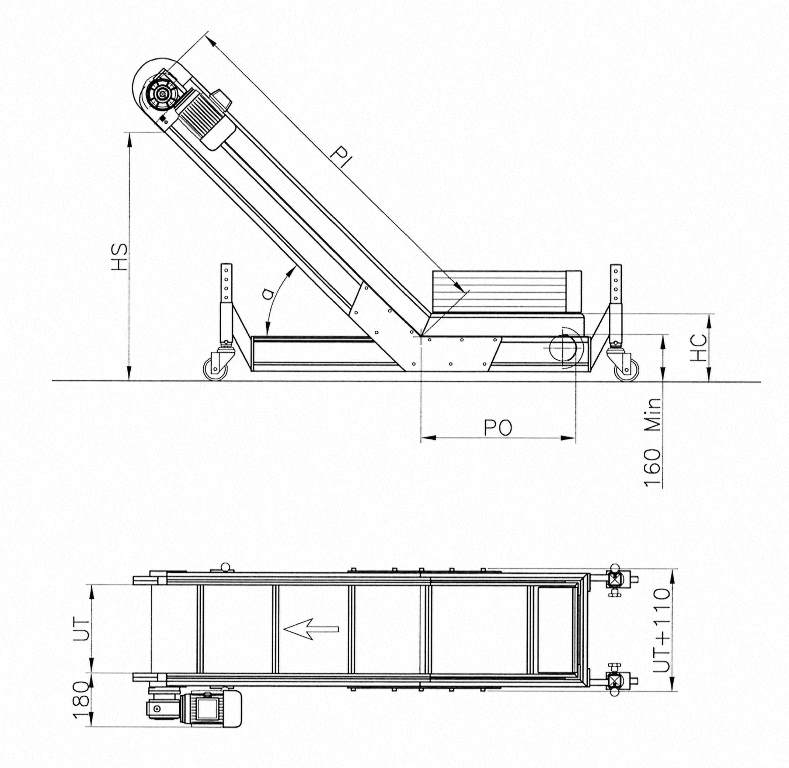

Equipment Outline Drawing

Application

Frame Material
Stainless Steel 304 Or Carbon Steel
Belt Material
MODULE BELT OR PVC, PU BELT FOR OPTION
Fixed Speed
27m/min
Weight
80kgs
Powder And Voltage
1P, 220V, 50/60Hz, 90W
Outer Size
(L)1530mm * (W)410mm * (H)200-800mm
Driving Device
Electric Motor
Transmission Device
Chain or PU belt
Belt Speed
Fixed Speed or Variable Speed

Layout
