Application：

Parameters:

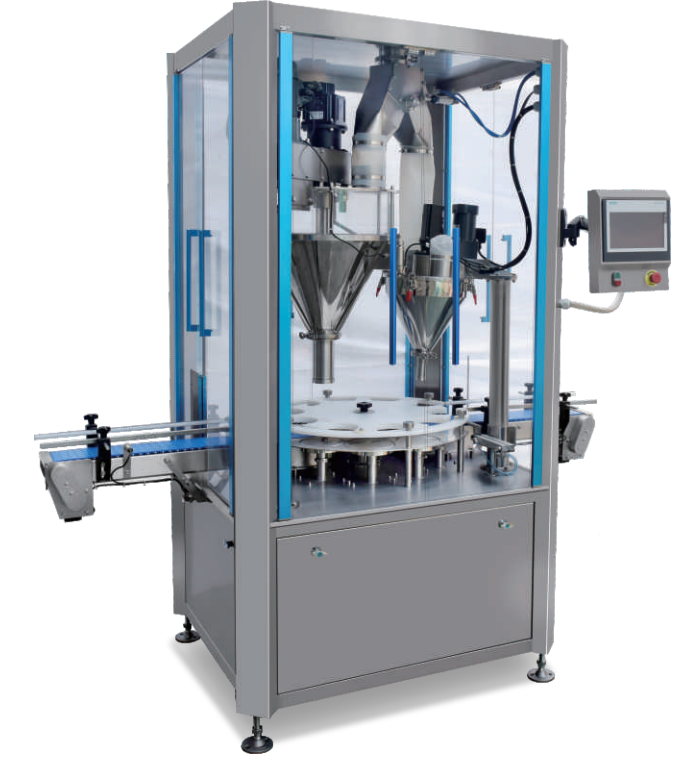

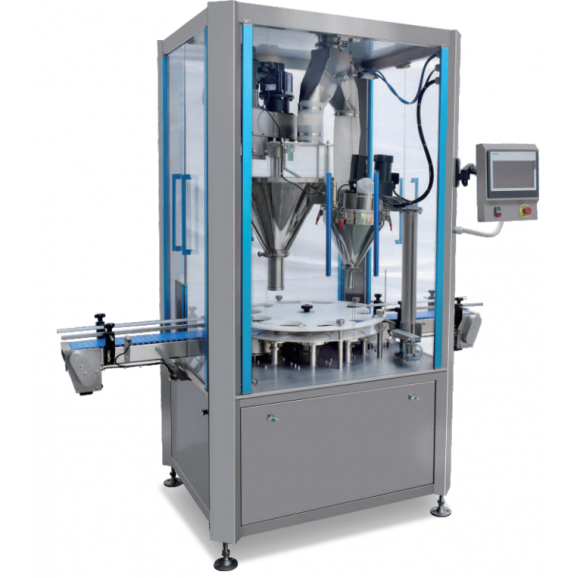

Powder canning filling machine

1. Metering method: relilling spiral rotation filling type after weighing

2. Container size: cylindrical container Φ50-180mm, height:50-350mm

3. Packing weight: 100-2000g(change spiral parts)

4. Packaging accuracy:≤±1.5g

5. Packing speed: 25-55 cans/min

6. Power supply: 3phrase 380V 50/60HZ, 3.5KW

7. Air consumption: 0.2m³/min

8. Weight of the machine: 700kg

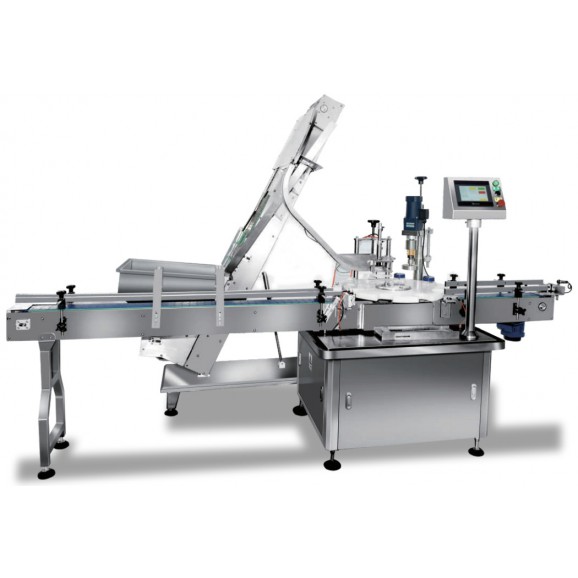

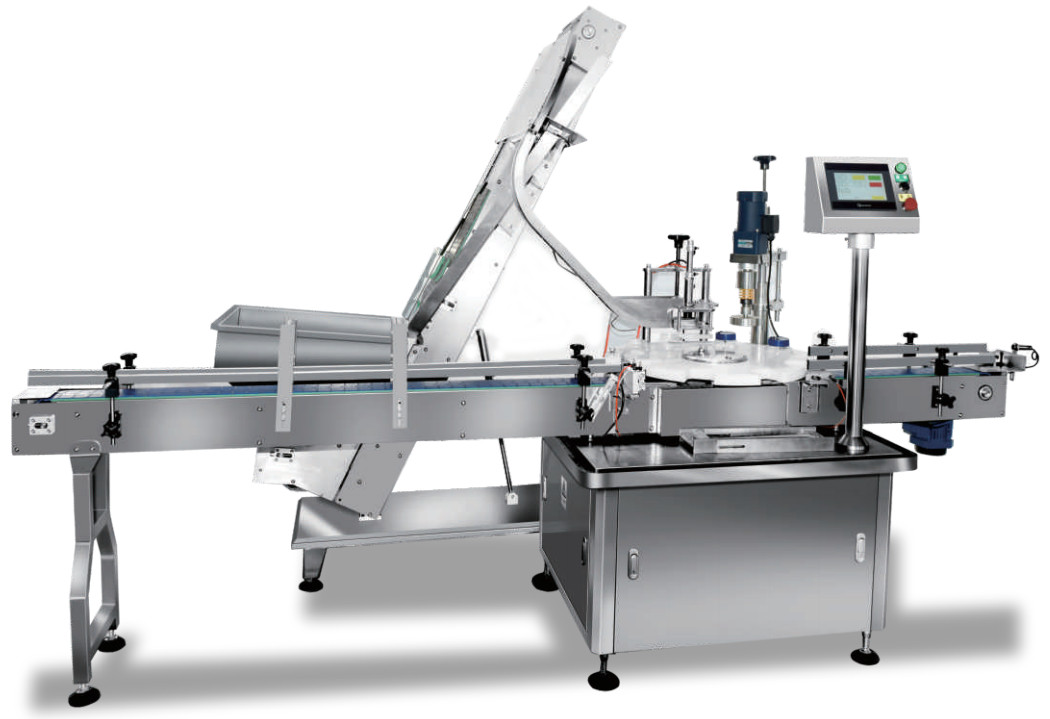

Automatic capping machine:

1. Machine size: 998*628*1438mm

2. Cover drop machine size: 1548*820*1780mm

3.Adapt to capping speed: 0-300 bootles/min

4. Applicable cover diameter: Φ 10-100mm

5. Adapt to cover height: 10-50mm

6. Applicable bottle deameter: Φ 10-120mm

7. Bottle height: 40-280mm

8. Voltage: 220V, 50HZ

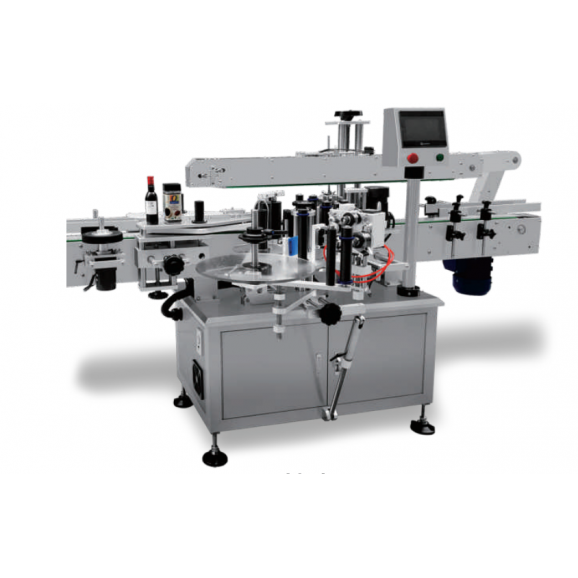

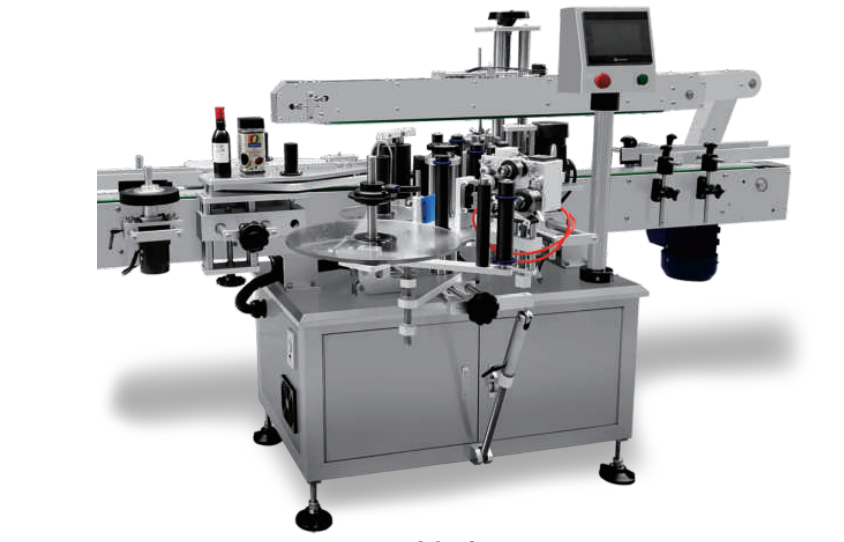

Automatic labeling machine:

1): Nitrogen filling function
2): Date Printer
