Application
Parameter
|
Model |
KL-L420 |
KL-L520 |
|
|
Measure method |
Volume quantitative |
Volume quantitative |
|
|
Making bag size |
(L)60-300mm, (W)60-200mm |
(L)80-350mm, (W)80-250mm |
|
|
Filling weight |
10-5000g Need change molds |
10-5000g Need change molds |
|
|
Packaging precision |
≤1% |
||
|
Packaging speed |
25-60bag /min Depend on the product characteristic |
||
|
Power supply |
Three phase 380/220V 50-60 Hz |
6 kw |
|
|
Pressure |
6-8 kg/cm2 |
0.2m3/min |
|
|
weight |
700kg |
950Kg |
|
|
Dimension (mm) |
1300×1500×2600mm |
||

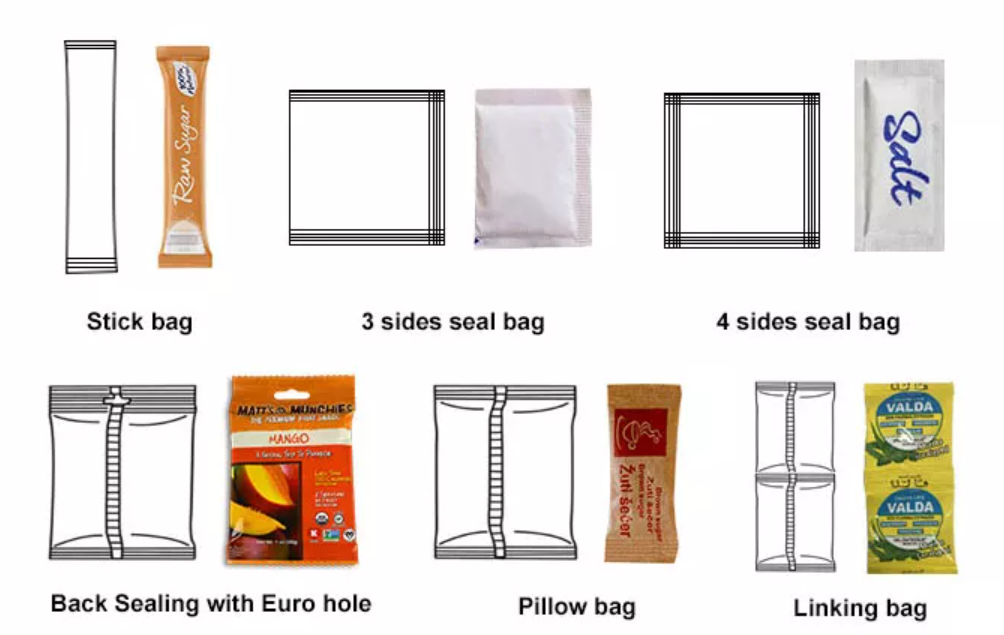

Package style
Optional
1): Nitrogen filling function
2): Venting device
3): Gusset device
4): Hook the hole cutter seat
5): Date Printer

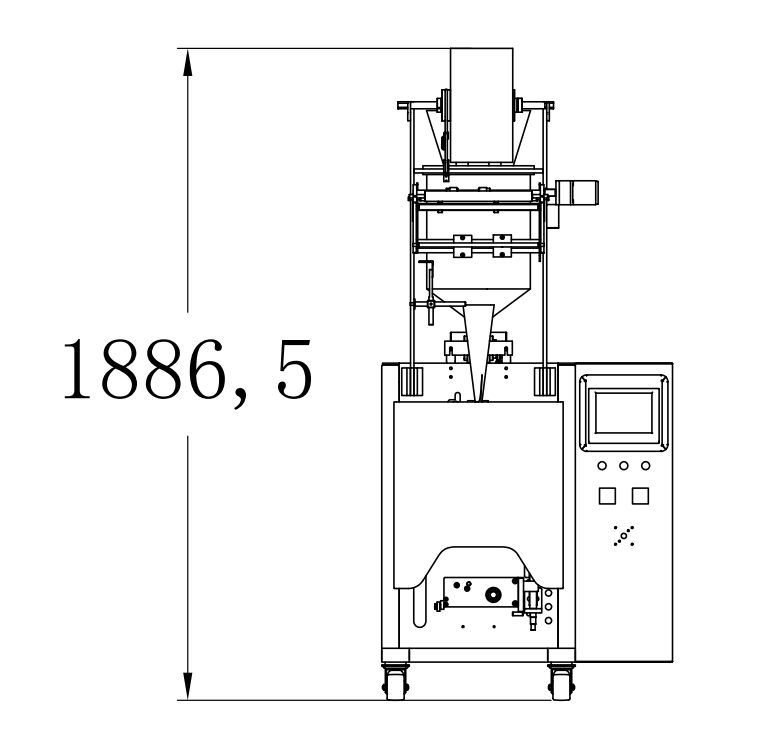

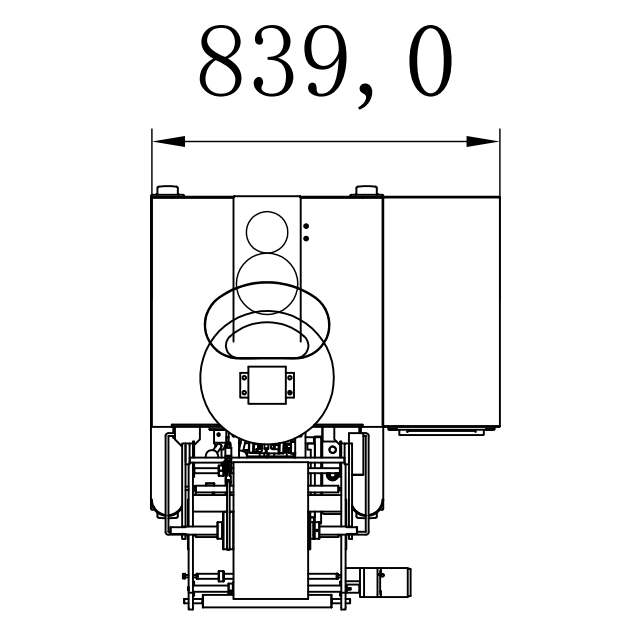

Layout
