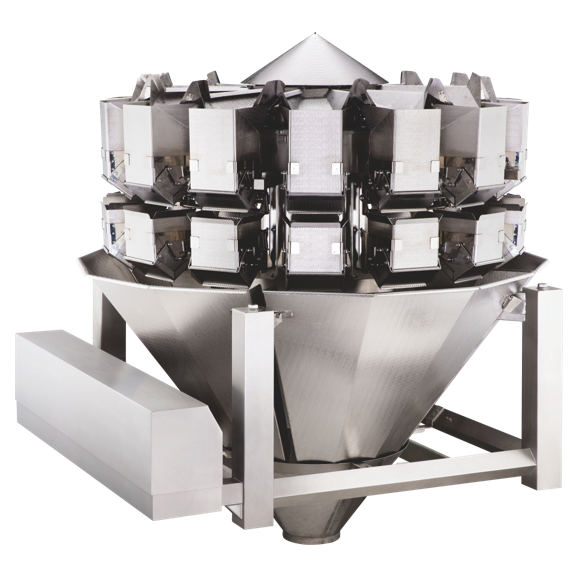

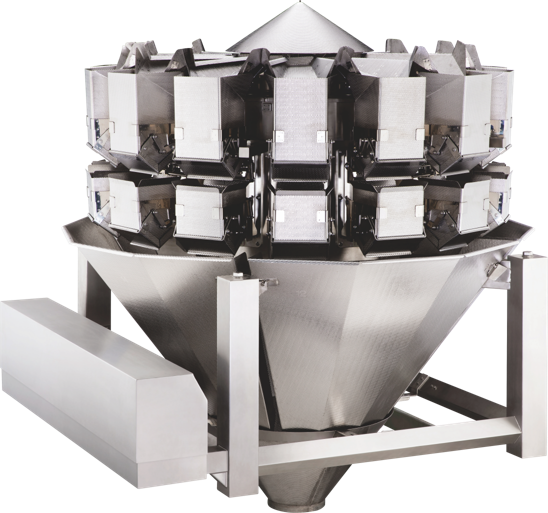

Big Volume Multihead Weigher

*The design of large capacity hopper apply to the weighing solution of heavy and large volume materials.
*Superior waterproof performance, easy for cleaning and wire protection.

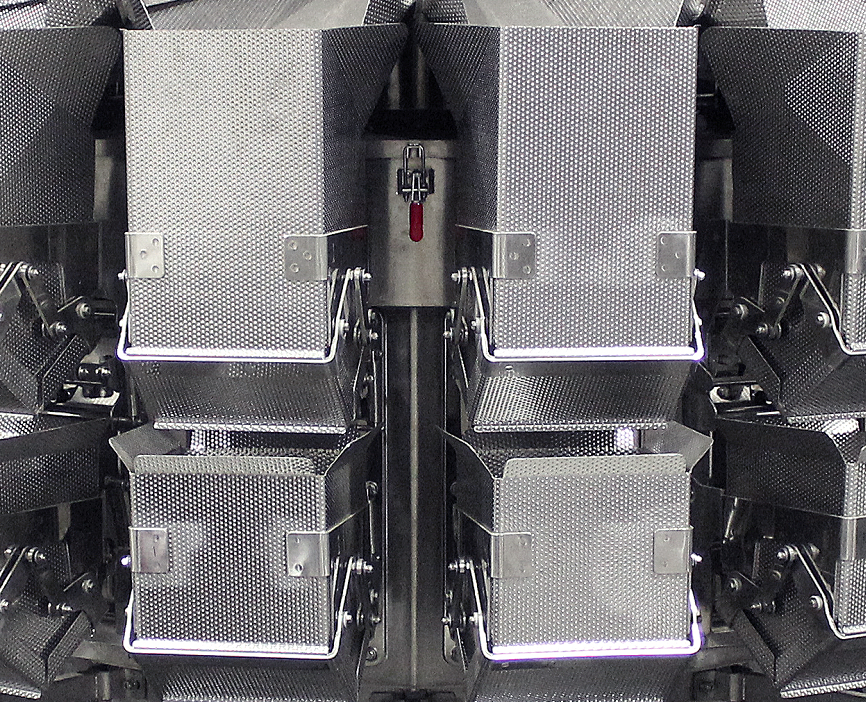

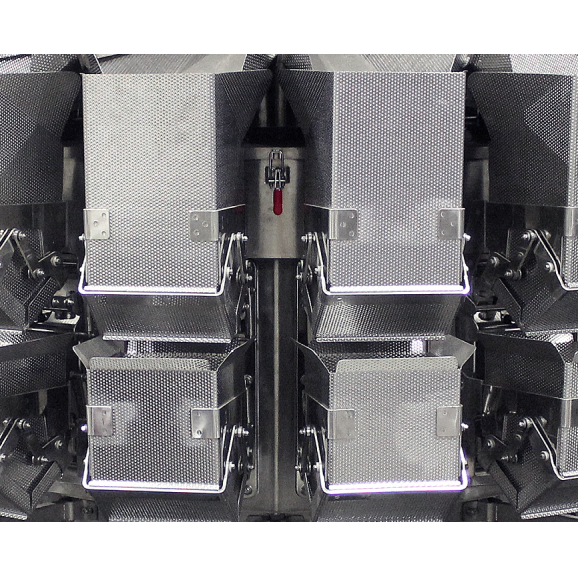

*Anit-condensation processing device and 7.5L hppper can solve effectively large capacity or heavy materials weighing solution.
*Speed of main vibration and amplitude can be ddynamically adjusted by display.
*The feeding amount of conveyor can be controlled by analog signal.
*The new 4G mainboard available to use the function of network, dispaly with USB connector and automatic program updates.
Tel:+86-757-28899280
Mob:+86-18029207226
Contact: sales@dreampacking.net
Application Range
Technical Parameters
Bag Sealing Type
Optional Items

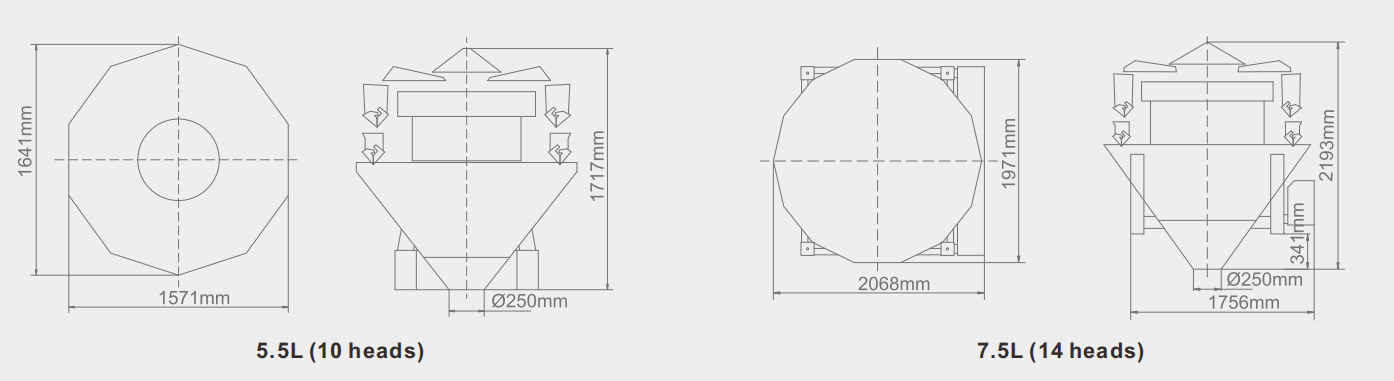

Equipment Outline Drawing

Loose of leafy object such as mix salad, been sprouts and frozen food like frozen french fries.

Parameters:

Model DP-C10 DP-C14
Hopper No. 10 14
Average tolerance 3g-8g 3g-8g
Hopper volume 5.5L 5.5L/7.5L
Max.weighing speed(WPM) ≤50 ≤70/≤100
Max.single discharge 1100ml 1100ml/1500ml
Single weigh 100g~3000g 100g~3000g
Single max. length ≤130mm

≤130mm/≤200mm

Water-proof level IP64/IP65 Optional IP64/IP65 Optional
Preset number program 99 99
Display 10.4 inch TFT color display 10.4 inch TFT color display
Power Single AC 220±10%, 50/60HZ, 1.9KW

Single AC 220±10%, 50/60HZ, 3.6KW

Single AC 220±10%, 50/60HZ, 4.3KW

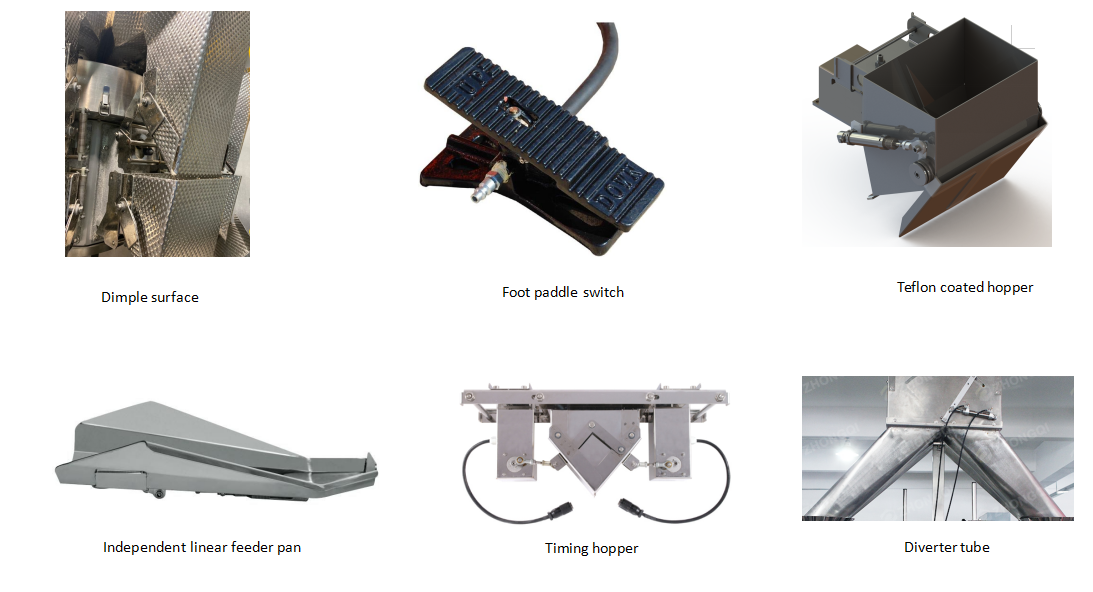

Optional & Modification

Layout
