Application
Parameter
|

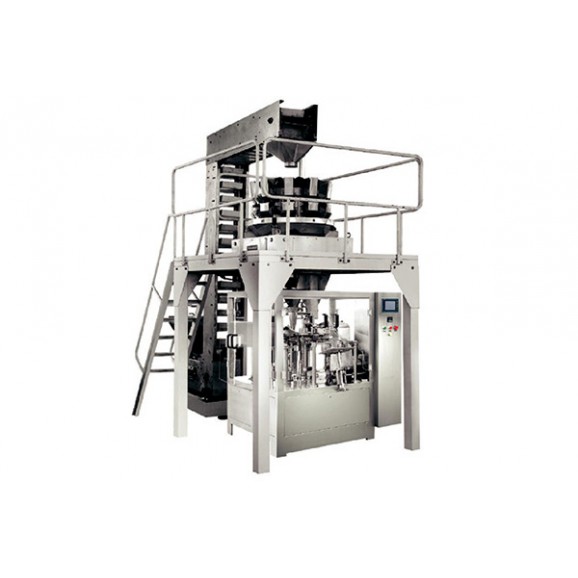

Working process |

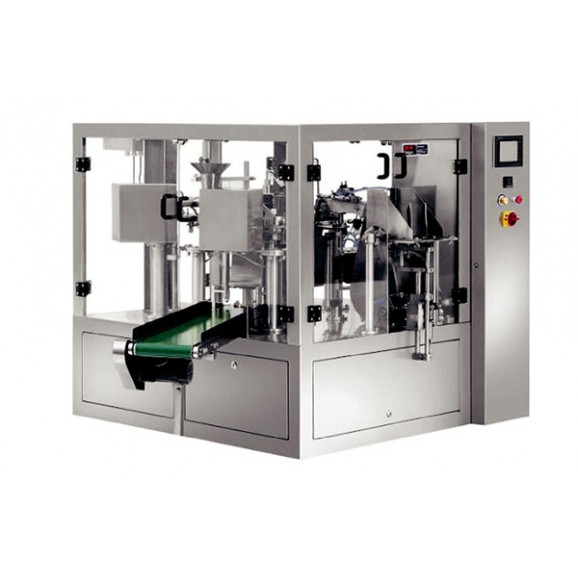

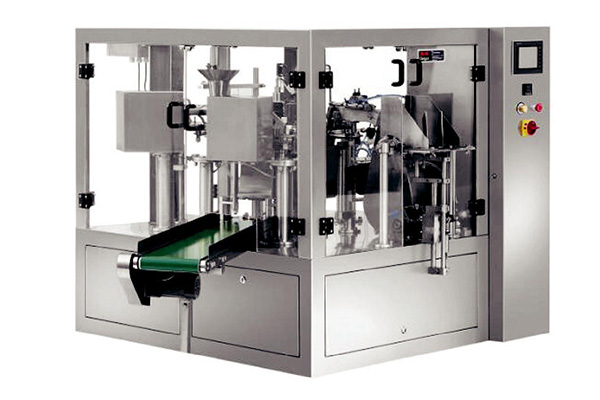

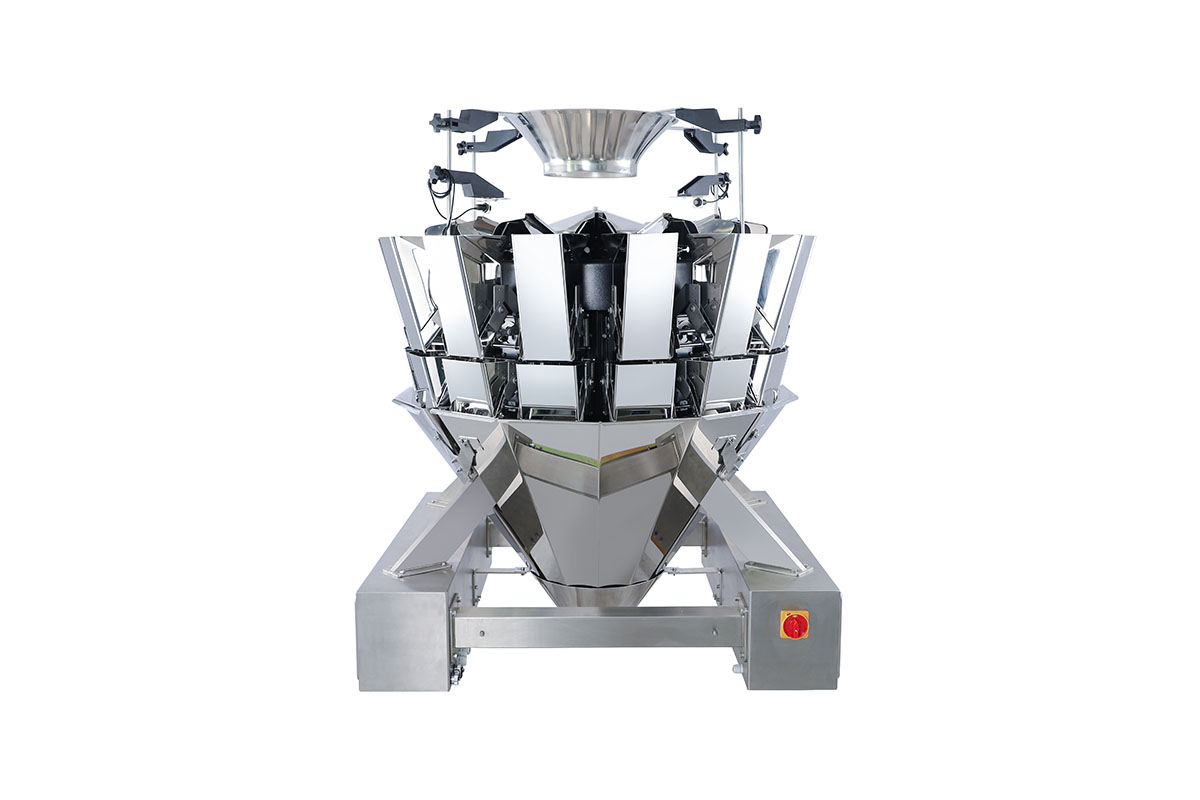

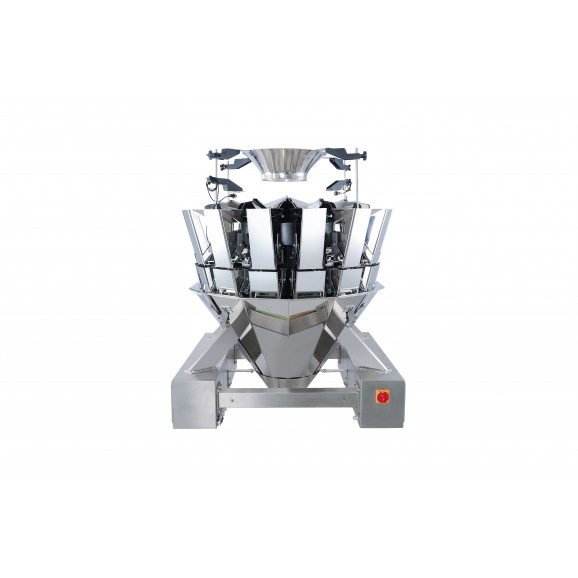

Z type Elevator ---10 head weigher---Working Platform---200 model packing machine |
|

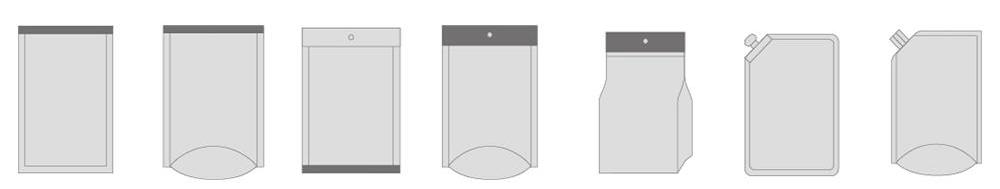

Making type |
Stand bag . Flat bag . 3/4-side seal pouch ,Zipper bag . Doypack shape |
|
Making bag size |
W：100 ～ 200mm L: 100 ～ 300mm |
|
Packing Range |
≤1000g |
|
Packaging speed |
20-60bag/min（Depend on the packing weight and material） |
|
Packaging precision |
≤±0.5-2g |
|
Power supply |
3 phase, 380V, 50/60Hz |
|
Total power |
5.2KW |
|
Overall Dimension (mm) |
4500×2500×3700mm |
Package Style
